. Published: 1/3/13 Installation and Operation Guide B e c a u s e m a t t e r s. AJA Video, with shipping charges prepaid.

AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located. Customer shall be responsible for paying all shipping charges, insurance, duties, taxes, and any other charges for products returned to any other locations. Video parts or supplies, or d) to service a product that has been modified or integrated with other products when the effect of such a modification or integration increases the time or difficulty of servicing the product. AJA KONA10-bit Log RGB and RGB Codecs as related to a 2K Workflow. Using KONA 3G with Professional Video /Audio Software. KONA 3G Installation and Operation Guide— Contents Audio Output Analog. 81 Up-Conversion.

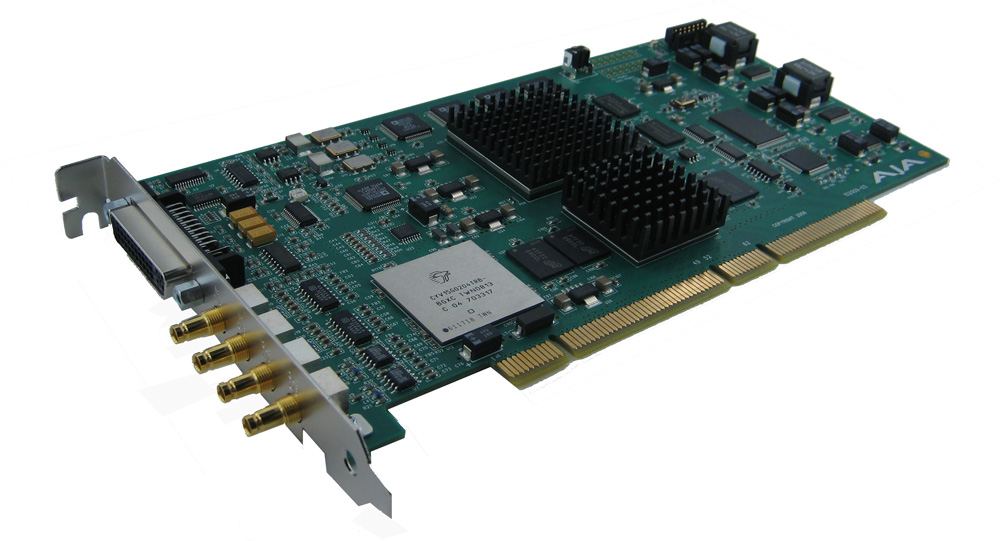

Chapter 1: Introduction Overview The AJA KONA 3G provides the highest quality whether working with SD, HD, Dual Link HD, or 3G signals. KONA 3G even supports 2K digital cinema and film resolutions and now offers a 4K capture and playback mode for the highest resolution possible. AJA drivers deliver extensive codec and media support within all professional 3rd-party Video applications. Features The KONA 3G card offers many unique features for optimum quality, ease of use, and support for a wide variety of post production workflows.

3G features include:. SD-SDI, HD-SDI, Dual Link HD-SDI, HSDL, and 3G HD-SDI inputs. 2K telecine to KONA 3G saves time and steps in the process by directly and simultaneously creating 2K DPX files and 2K QuickTime. Material can be played out at 2K via HSDL (High Speed Data Link), offering further synergy with other 2K products, such as projectors or DDRs, currently available in the market. Internal HD/SD Hardware Downstream Keyer KONA 3G provides a powerful hardware keyer that can place graphic files with an alpha channel over video in a selectable matte or the contents of the card's framebuffer from a software application (including AJA TV /AJA's VTR Xchange).

Key a bug or text over picture and avoid what might normally be a lengthy software render. Data rate: 3+ MB/second standard definition only—supported by internal system drive Quality: Good DV is commonly input to an Apple computer via FireWire. KONA 3G can capture directly to DV compressed media from an uncompressed SDI source.

For devices without FireWire (IEEE1394 or i.Link) connections, this allows the user to capture to this low data rate/good-quality codec. Data rate: 6 to 14 MB/second high definition—supported by internal system drive Quality: Excellent KONA 3G has hardware support for capture from HD-SDI to the DVCPRO HD codec. KONA 3G's hardware also takes some of the DVCPRO HD codec processing load off the CPU, allowing more computer processor time for Dynamic RT. Read Me First Notice, Registration sheet, and any other late-breaking news and/or errata related to KONA 3G. Please save all packaging for shipping the KONA 3G should you wish to do so when moving or sending it in for service. (read/write). There are a variety of system configurations and peripherals that can provide this level of performance.

KONA 3G users wishing to configure a storage for a system should also be aware that raw benchmark numbers alone do not necessarily reflect the performance of a drive solution. If a particular drive array or manufacturer is not listed, it may simply be because AJA has no experience with the company or a particular unit. This guide simply offers examples that AJA has used with success when working with the specified formats listed. GB = GigaBytes Cable Connections When KONA 3G is installed in an Apple desktop computer, it connects to the outside world via either the standard cable set supplied with the board, or the optional K3G-Box Breakout Box (using the cables and directions supplied with it). Use the cables or the optional Breakout Box to connect your VTR, input and output sources, and external reference video (genlock). The four mini-connectors found on the KONA 3G endplate are not common to most video equipment but offer small size, ease-of-use, and high reliability.

(The connectors are also called “mini-BNCs” and “1.0/2.3 Connectors”.) To make a connection with these connectors simply push the cable mini-connector onto the endplate mini-connector. A fourth output via HDMI 4.1a is also provided. When the KONA 3G is reconfigured for 4K Mode and a 4K format is selected, all four of the mini BNCs are used as outputs for each of the 4K playout quadrants. There are no SDI inputs available in 4K formats.

HDMI and Analog Output in 4K Format When the KONA 3G is in 4K Mode with a 4K format selected, the HDMI and Analog Outputs can be selected to display one of the four 4K picture quadrants for output. A quadrant selection menu is provided in their respective AJA Control Panel tabs. Chapter 2: Installation Installation Overview The installation and set up of a KONA 3G is very simple. All of the steps of installation and configuration are documented in this chapter, summarized as follows: 1. Unpack and examine the contents of the shipping box 2. If you purchased the optional K3G-Box breakout box, it ships with a multi-pin to multi-pin cable for connecting from the KONA 3G card to the breakout box. The x4 BNC cable to 1.0/ 2.3 connectors cable that shipped with the card is also needed interconnect the SDI connectors out of the card to the breakout box.

AJA will repair or replace damaged items. If you find shipping damage, contact your AJA dealer or distributor for details on how to have your KONA 3G repaired or replaced. Remove the side access door and described in your Apple User Manual. Lay the machine on its side, motherboard facing up. Remove the KONA 3G card from its protective anti-static bag; place the card on top of the bag. KONA 3G Installation and Operation Guide — Installing the KONA 3G Card To Install: Remove Screw and Cover Plate Insert KONA Card Secure KONA with Screw Removed Earlier PCI-Express Slots Mac Pro Cardcage Access PCI-Express Slots Slot 3 is the preferred slot.

To install the KONA card and RAID controller card (SCSI or Fibre Channel), refer to the AJA website for the latest installation updates at the URL provided. Because of hardware and software changes, AJA engineers are constantly testing and grading workstation performance. The AJA website is your best source of up-to-date approved workstation configurations. KONA 3G Installation and Operation Guide — Installing the KONA Card in a 6. Open the card retainer bar on the left side of the chassis cardcage.

Remove the card edge access cover from the desired slot where you will be inserting the KONA card. 4 standard BNCs Audio Input BNCs Channels 1-8 (2 channels/connector) Audio Output BNCs Channels 1-8 (2 channels/connector) SDI Out1/Link A BNC SDI Out2/Link B BNC SDI In1/Link A BNC SDI cable SDI In2/Link B BNC KONA 3G System Using Breakout Cable. Connect two SDI cables between KONA 3G and your digital VTR (Digital Betacam etc.): one from KONA 3G SDI In to the VTR SDI Out, and one from KONA 3G SDI Out (1 or 2) to the VTR SDI In. The KONA 3G SDI connections have embedded audio (16-channels) so the VTR must be configured accordingly. Workstation computer Computer Monitor External Storage External Storage Video Monitor Component Video AJA KONA 3G Card 3 BNCs (Analog Connections): HDMI Output cable Component, Composite, or S-Video In HD Can Only Be Component Optional Genlock Reference Input BNC Reference LTC Output BNC. You cannot use KONA 3G with Third-party software until the application has been installed and run at least once on your workstation.

Next, install the KONA 3G driver package. After installing KONA drivers you will install your selected AJA third-party plugins integrating KONA functionality into your capture/editing application.

Locate the downloaded driver on the desktop or the KONA 3G CD icon on the desktop. Locate the package file in the folder from the download or by double clicking on the CD. KONA 3G Installation and Operation Guide — Installing KONA 3G Software Initial Installer Screen 8.

Click Continue to begin installation. The next screen lets you know that the installer will check your Mac to ensure it has the hardware and software resources required (see Minimum Requirements in Chapter 1). 11.At the next screen, click the Install button to place the software on your computer. Easy Install, Installer Screen 12.The installer will run and put all the necessary KONA 3G drivers, AJA Control Panel, presets and additional software on the desired hard drive. When it has completed. KONA 3G Installation and Operation Guide — Installing KONA 3G Software Installation Progress Bar Final Installation Screen 13.Click the Restart button to complete the installation procedure. The system will perform a software restart and be ready for use.

Note: You may be required to update the KONA card’s firmware if installing a new version. Software Installation Procedure Locate the AJA KONA Software download or CD ROM packaged with your system and follow the procedure below to install the required software on the host system. The KONA for PC software is intended for Windows 7 64-bit workstations. KONA 3G Installation and Operation Guide — Installing KONA 3G Software Install Wizard The KONA installation program will launch and extract the necessary KONA drivers for installation on the desired hard drive. Install Wizard Welcome When you see the Welcome page, click “Next” to view the KONA license agreement. Read the KONA license agreement and check the Agreement box to accept. You will be asked to choose the type of installation you would like to perform.

Installation Type If you don’t have all the KONA supported products installed on your workstation, you may choose to perform a Custom installation (default) and select only the software necessary for your applications. KONA 3G Installation and Operation Guide — Installing KONA 3G Software Custom Installation Menu You may deselect an Item for installation by using the pulldown to make it unavailable. Custom Selections Pulldown Menu. Use the second level options choose the specific drivers and plugins you would like installed. Disabled selections are marked with a red X. Before clicking Next to install, you can verify your disk space availability by clicking the Disk Usage button.

Workstation Disk Usage Display To return to the installation click OK. When the installation is completed, a final screen will be displayed announcing that “Setup has finished installing AJA KONA on your computer. ” Click on the Finish button after the installation is complete. The AJA Retail installation requires you restart the computer after installation to activate the KONA card.

Updating KONA 3G Firmware When you update your KONA 3G software by downloading new versions from the aja.com website, it is possible that some versions may also require a firmware update to update the software stored in non-volatile memory on the board. Always carefully read the release notes that accompany each version to be installed. For video stability and proper system operation, it’s best to genlock all equipment to house sync. Although genlock is not required for KONA 3G or your system, better quality will be seen by doing so.

Usually, this means using a black burst generator output looped through the system. Chapter 3: Operation Using KONA 3G with Professional Video /Audio Software After you install the KONA 3G software and any AJA plug-ins to support your choice of 3rd- party software, you’re then ready to begin capturing and playing back video and audio. Tabbed Windows or third-party application Easy Setups.

It is important to realize that inside the Macintosh many applications can use the KONA 3G (as you switch from window to window) and it may not always be obvious which currently controls it. Firmware: choose between Standard and 4K Modes and initiate installation of the firmware. Info: displays status information and firmware version # of the KONA 3G and how it is installed in the host Macintosh.

This information is generally intended for. The KONA 3G can be controlled by various software applications running on a host Mac. The Control Screen is where you select how the KONA 3G directs video and is used by application software. This screen also provides control for configuring output timing with regard to external reference video and horizontal/vertical delay. Note: the graphic file will not be scaled to fit. If it's smaller than the current frame buffer format, KONA 3G will center it in the frame.

If it's larger than the current frame buffer format, it will be cropped on the right and bottom. Also some graphics formats and bit depths may not be supported. (called the Primary Format) and allows you to change it. All throughout the Control Panel, choices are always presented based on what KONA 3G can do with the signals available and the inputs/outputs selected.

For example, on the Format screen, if the output or inputs are a different format than the primary, then you’ll see an additional information pane that allows. Crossconversion: if you have an HD format as your primary and then select a secondary HD format with a different frame size, the KONA 3G will perform a crossconversion where necessary (input or output) for “like Hz” formats. “Like Hz” means that 720P 59.94 may be converted to 1080i 29.97 (59.94Hz). Video Input—the pulldown menu allows you to see and change what's currently selected and the video format that KONA 3G has detected (if any). In the example shown previously, it shows that video is selected at the HDMI input and the format is 1080i with a frame rate of 29.97. SDI outputs with video in blue and the key in red.

Stereo—when selected, this indicates that SDI 1 represents the left eye output and SDI 2 represents the right eye output of stereoscopic material.KONA 3G also offers single link 3Gb output of multiplexed Stereo 3D. 3Gb—output (SMPTE 424M) using a single-link transport. HDMI Screen The KONA 3G’s HDMI input and output are shown and configured at this tab screen. AJA KONA 3G HDMI Screen HDMI Output Settings—the Source pulldown menu allows you to select either the primary video format (framebuffer) or a secondary one (up/down/cross-conversion).

KONA 3G Installation and Operation Guide — Control Panel Operation Analog Out Screen KONA 3G provides a high-quality analog component or composite + Y/C output, generally used for monitoring. This screen shows the current settings for that analog output, and allows you to re-configure it when desired (format and black-level). Video Setup Screen KONA 3G provides a high-quality analog component or composite output, generally used for monitoring. This screen shows the current settings for that analog video output, and allows you to re-configure it when desired. AJA Control Panel, Video Setup Screen Setup Screen Settings Analog Black Level—choices available for Black Level are the two Composite analog formats. Lock Audio Gain To Unity—When set, the KONA 3G will ignore the third-party application gain setting and set the audio gain at unity. When not set, this checkbox tells the KONA 3G to get the audio gain setting from the application.

Conversion Screen This screen offers controls that determine how the card behaves with 3rd-party applications. AJA Control Panel, Conversion Screen Conversion Screen Settings Pause On—these two choices determine what happens when the editing application is paused in stop mode: Full Frame: both fields are displayed resulting in some jitter while paused. KONA 3G Installation and Operation Guide — Control Panel Operation AJA Control Panel, Codec Screen, Frame-padding Pattern Choices YUV-RGB Conversion: These pulldowns select industry standard color space and gamma transfer functions for the YUV-RGB conversion, or allow you to direct the KONA card to automatically determine it for you. DS Keyer Screen The KONA 3G has a hardware-based downstream keyer that is ideal for putting logos, “bugs” or other video material with an alpha channel on top of video being played out or printed to tape.

A typical application would be putting a television station's call letters or channel over program video content. KONA 3G Installation and Operation Guide — Control Panel Operation Graphic over Frame Buffer—places a graphics file having an alpha channel (chosen in “Graphic File” pulldown) over the current contents of the KONA card’s Frame Buffer (which might be from storage, video In, KONA TV, etc.). DS Keyer Screen, Loading a Graphic Over Framebuffer Click Matte Color Button to Bring Up Color Selection Dialog DS Keyer Screen, Loading a Graphic File Over a Matte.

Aja Software

KONA 3G Installation and Operation Guide — Control Panel Operation Timecode Screen The timecode screen is used for both monitoring the RP-188 timecode embedded in the digital data stream and for selecting a timecode offset on output (if desired). Settings for the output section of the tab can be used to create window burn superimposed timecode outputs. “Output Timecode Offset” to ensure the timecode is synchronized. Timecode Burn-in—this pulldown selects whether the timecode value is “burned-in” on video output from KONA 3G.

If set to “OFF”, timecode will not be keyed over the video. If set to “timecode”, then the timecode value will be keyed over the output video. KONA 3G Installation and Operation Guide — Control Panel Operation Presets Screen After configuring the AJA Control Panel screens, you can then save all your settings as a snapshot for later recall—called a preset. In this way, you can organize presets for all your typical tasks, eliminating time-robbing manual reconfiguration each time. Firmware Screen Use the KONA 3G tab to access the firmware changeover screen. The Desired pulldown menu allows you to select either:. Standard Mode—for SD, HD, and 2K formats (allows up/down/crossconversion).

4K Mode—for SD, HD, 2K and QuadHD (3840x2160) and 4K (4096x2160) formats (disables up/down/crossconversion) Click install to erase current firmware and load the desired mode. KONA 3G Installation and Operation Guide — Control Panel Operation Info Screen This screen shows the KONA 3G software files that have been installed on your system. This information may be needed if you talk to an AJA Customer Service representative to determine if files are missing or need updating. “Format Screen in 4K Mode” on page 65. Note: The KONA 3G can only be configured for either input or output of 4K at a time.

It cannot support 4K input and output at the same time since both require four BNCs. KONA 3G Installation and Operation Guide — Using 4K Mode Format Screen in 4K In 4K Mode, you will see SDI inputs when the selected Primary Format is standard SD, HD or 2K.

SDI inputs are reconfigured as Outputs SDI 1 & 2 when a 4K format is selected. You can capture 4K video using an appropriate capture application (such as AJA VTR Xchange shown) by selecting a 4K digitizer in the application. When KONA 3G is controlled by the application, it will automatically map the SDI ports to 4x HD(1080) for QuadHD.

The inputs will show 2Kx1080 for 'true'. KONA 3G Installation and Operation Guide — Using 4K Mode SDI Output Tab in The SDI Output Screen allows you to select the Primary format or RGB for 4K output. Video+Key and Stereo 3D are available selections for SD, HD, or 2K formats only. HDMI Tab in 4K The HDMI screen allows you to make the same selections previously described for Standard Mode when an SD, HD, or 2K format is selected (refer to “HDMI Screen” on page 50).

Mode HDMI Output Screen with Quad HD Format For 4K formats, a Quandrant Select menu is available to choose the desired quarter-segment of the 4K display for HDMI output to a monitor (see the discussion on 4K quadrant mapping at this beginning of this section). KONA 3G Installation and Operation Guide — Using 4K Mode Analog Output Tab The Analog Output screen allows you to make the same selections previously described for Standard Mode when an SD, HD, or 2K format is selected (refer to “Analog Out Screen”. 4K Mode also adds the 4K Geometry selection (check box). Like other raster sizes, the Geometries checkbox needs to be enabled for 4K for the format to be presented and 4K Mode selectable in applications like AJA VTR Xchange and AJA TV. Video Setup Adding 4K Geometry Checkbox Downstream Keyer The Downstream Keyer is not available for use in 4K Mode. KONA 3G Installation and Operation Guide — Using 4K Mode Firmware Tab for Use the KONA 3G tab to access the firmware changeover screen.

The Desired pulldown menu allows you to select either: Standard Firmware Update. Standard Mode—for SD, HD, and 2K formats (allows up/down/crossconversion). Saving Your Control After configuring the AJA Control Panel via the Tabbed screens, you can then save all your settings as a snapshot for later recall—called a preset.

In this way, you can organize the Panel Presets presets for all your typical tasks, saving time by not having to manually reconfigure each time. In the upper left corner of the AJA Control Panel application, you will see a board name, such as KONA 3G-0 and the pane heading will read “AJA Control Panel” if you have more than one product and the associated drivers installed (if only one product is installed, you’ll see no product or pulldown and the product name will appear in the header). AJA TV optionally supports playback in the background; checkbox “Continue Playback when AJA TV is in background. Notes on using Performance of multi-product use depends on a variety of factors: CPU usage, RAM, disk IOPS/ bandwidth for streams of video, etc. And therefore performance may vary. Also be aware that.

Frequently Asked Questions Can I use SATA Drives for RAID storage with the KONA product line? AJA always recommends the use of SCSI or Fibre Channel storage solutions for use with KONA products.

I updated the KONA software and my KONA hardware is now missing, Why? A function of the uninstaller is removing the current driver for the KONA card. Next, please ensure that the “Resolution” setting for “Time Controls” is set to “Full”.

If not set to “Full, ” the image that the AJA Preview Panel receives and sends to the KONA board during RAM Preview will not be sent at “Full Resolution” and thus will either be software resized to Full Resolution before sending to the KONA Board for display, or will be center cropped before sending. KONA 3G Installation and Operation Guide — Frequently Asked Questions What file formats are supported by KONA? We support the following formats: AVI files in the following Subtypes QuickTime files in the following Subtypes 8-Bit YUV 4:2:2 – ‘2vuy’ 8-Bit YUV 4:2:2 – ‘2vuy’. Appendix A: Specifications Video Formats. 525i 29.97. 625i 25. 720P 50, 59.94, 60.

1080i 25, 29.97, 30. 1080PsF 23.98, 24, 25, 29.97, 30.

1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60. 2048 x 1080P 23.98, 24, 25, 29.97, 30, 50 and 60. 2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC). 4K/QuadHD 4:4:4 (4 x BNC).

HDMI v1.4, 30/36 bits/pixel, RGB or YUV, 2.25Gbps, SD, HD, 1080p-50/60 Video Output Analog:. Composite/S-Video (Y/C) (1 x BNC/2x BNC+adapter). NTSC, NTSCJ, PAL. KONA 3G Installation and Operation Guide — Audio Output Analog Audio Output Analog. 2-channel unbalanced output (via 2 x RCA jacks on optional K3G-Box) Up-Conversion. Hardware 10-bit. Anamorphic: full-screen.

Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars. Reference Input. Analog Color Black (1V) or Composite Sync (2 or 4V). Looping. 75 ohm on optional K3G-Box, terminated on supplied breakout cable Machine Control. RS-422, Sony 9-pin protocol (via breakout cable or optional K3G-Box).

9-pin D-connector pinout is as follows: 1.GND 6.GND. KONA 3G Installation & Operation Guide — Index Index Symbols audio input/output Audio Inputs And Outputs.pkg audio monitoring connections Numerics Audio Out 10-bit video 24 frames-per-second to 30 conversion Balanced Betacam 2K support Black 2K Workflow black borders 3D output. Control Panel Presets full-screen Control Panel, Tabbed Screens Control Screen Gamma Control Screen Settings Gatekeeper Conversion Genlock Conversion Icons, Control Panel genlock conversion, YUV-RGB Genlock and Your System Crop Getting Help 2, 46 crossconversion Graphic File Custom LUTs graphic file, test pattern output graphic files 5, 10 Data Rate Calculator.

KONA 3G Installation & Operation Guide — Index Presets, KONA 3 Control Panel preview settings K3-Box realtime K3-Box connector descriptions Primary Key a bug Primary Format keyed video Problems, what to do Keyer problems, what to do if you encounter. Shipping Box Contents, illustration shipping box, unpacking V Crop sidebars Varicam timecode Single Field Vertical reference SMPTE RP 188 video and audio input/output connections SMPTE-372M compliant 4 video connections 61, 72 snapshot, Control Panel settings Video Format Software Video Formats software files that have been installed Video Input Software For Striping.
